Air-slide-fabric CSM China >> News >> Key points of knowledge of air slide fabric in application

Key points of knowledge of air slide fabric in application

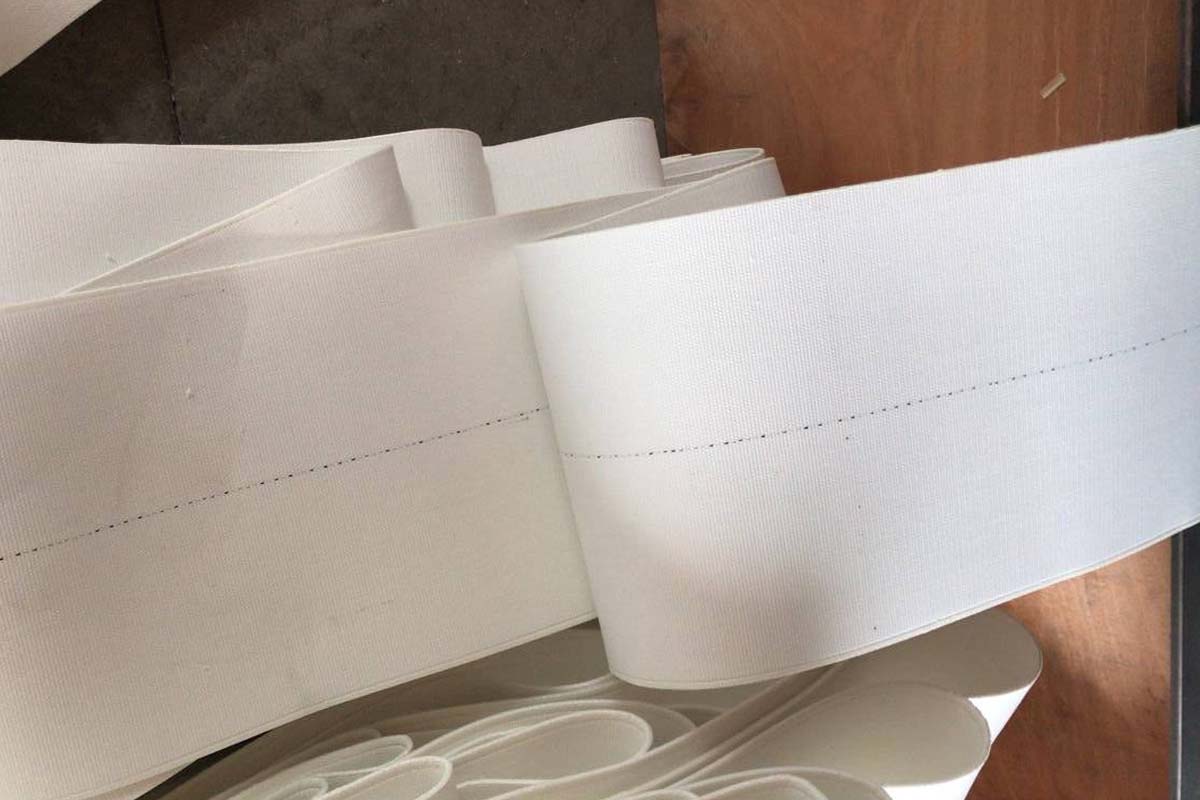

Air slide canvas

Air slide canvas

Choose the specifications:250mm 270mm 480mm 580mm

the specifications between 10mm to 1600mm can be produced at any time according to user needs; more than 1600mm of special specifications to be agreed in advance.

Key points of knowledge of air slide fabric in application

Description

The air conveying slant is suitable for conveying cement and other easily fluidized powdery materials. The equipment adopts a new air slide fabric. The chute is composed of upper and lower grooves, and a special wear-resistant chemical fiber material is used as a breathable layer to separate the upper and lower grooves. When high-pressure air enters the lower trough and enters through the chute canvas, the material in the upper trough will flow into a fluid state and flow after gravity to achieve the purpose of transportation.

air slide fabric
air slide fabric

Because the air slide fabric is mainly used in industrial cement tanks and gas transportation pipelines, it brings convenience to industrial production. Let us introduce you to the knowledge points of relevant air slide fabric:

The temperature resistance of the air slide fabric can reach 180℃ in an instant, and about 150℃ at constant temperature. The new air slide fabric we produce is made of high-quality, heat-resistant and corrosion-resistant chemical synthetic fibers, woven on special equipment according to specific requirements, and its technical performance and product quality have reached the international advanced level of similar products. The air slide fabric has the advantages of high temperature resistance, corrosion resistance, abrasion resistance, low moisture absorption, light weight, smooth surface, long service life, etc., and the air slide fabric is easy to maintain, has good sealing, no noise, safe and reliable operation, and low power consumption. It is convenient to change the conveying direction, and it can be widely used for multi-point feeding and multi-point unloading.

air slide fabric
air slide fabric

Pneumatic conveying devices and gasification bed devices using this air slide fabric have been widely used in metallurgy, building materials, chemicals, power plants, food and transportation industries, and have achieved good results, replacing traditional belt conveying and spiral conveying.

In addition: The air slide fabric should be handled with care during transportation, and must not be savagely loaded and unloaded. The means of transportation should be clean, and should not be mixed with oil and chemicals. At the same time, it should be protected from the sun, rain and snow. The product should be stored in a dry and well-ventilated warehouse. It is strictly forbidden to store it with oil chemicals. It should be protected from moisture and kept away from heat sources.

Our air slide canvas is densely processed, so it has a high density and is not easy to stretch and has a longer life. Welcome to consult, email: [email protected].

Air slide fabric

About Us



Send us your query!



Industrial filter bags,Air Slide Fabrics,Needle Punched Felt,Bulk Loading Bellow are just some of our products.More than 100 world-renowned companies such as Lafarge, TCC and other selected our products.

China Sunrise Machinery (CSM)is a professional cement equipment manufacturing enterprise. We were named one of the "China Machinery Industry's Most Famous Brands”. All the cement machinery products have passed three standard embraced in one system, consisted of ISO9001, ISO14001, and OHSAS18001. Five types of the products have get European CE certification, meanwhile it owns about 30 patented products &high-tech products.

Please provide the following information, We will contact you as soon as possible.








Airslide Fabric

Air slide fabrics are used for the pneumatic conveying of fine dry powdery products such as cement. The air slide cloth divides the air slide into upper and lower chambers. The chamber is inclined at as low as 1.5°.Compressed air is injected into the lower chamber which then goes through the media and “fluidises” the cement powder. The cement then behaves like a fluid and “flows” down the length of the chamber.

TIPS

Airslide is a semi-permeable textile cloth which allows air to pass through but not the products.

Airslide Fabrics other names are: airslide fabric,air slide fabric,air permeable fabric,fluidising fabric,fluidizing fabric,air slide belt,air slide canvas,aeroslide,airslide membrane,aeration pad, aeration fabric.air slide fabric in shipping,air slide fabric for silos,chute bottoms.
